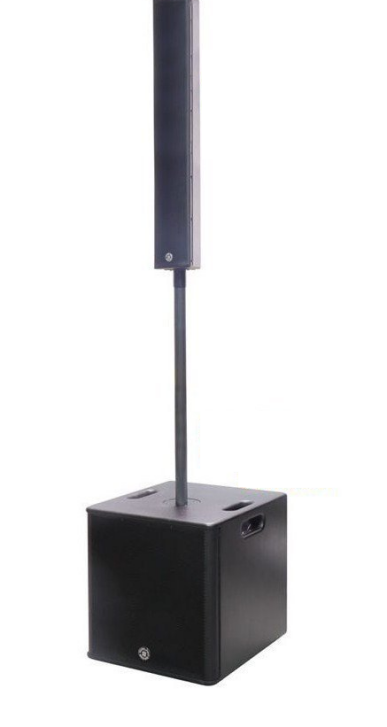

Topp Pro SOHO V8 + S12 Set Column Array Sistem Seti

SOHOV8+S12 Array Speaker System 8x3.5'Top+12'Sub 2800W, 130 dB

1 Sub + 1 Üst Hoparlör 1 settir.

Teknik özellikler

Model	SOHO V8 - Mid / High Unit
Mid range woofers	8 x 3,5' wideband speakers, 1' Voice Coil
Nominal power handling capacity	480W Program / 960W Peak
Frequency response -6dB	140Hz -20kHz
Axial sensitivity 1W@1m	97dB / 127dB Max.
Nominal impedance	4 ohms
Input Connector	1 x SPK
Directivity	100° horizontal
Crossover frequency	350Hz, 24 dB / Oct. Actiive
Enclosure Construction	Body In extruded wood, Black paint
Mounting	One metal pole-mount, two M8 Hanging points
Dimensions (WxHxD)	129.7 x 760 x 102.6mm (5.11' x 29.92' x 4.04')
Net Weight	6.95 kg / 15.33 lbs.

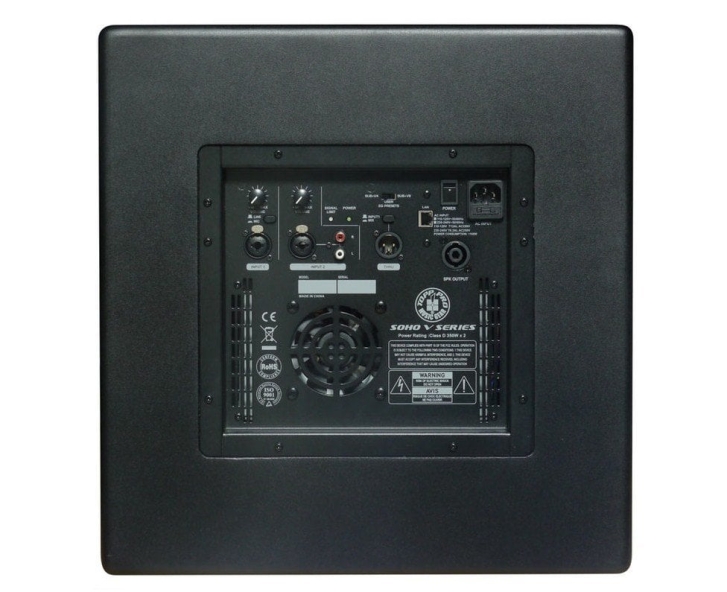

Model SOHO S12 Subwoofer 1 x 12' Ø320mm - 2.5' Voice Coil Frequency response -6dB 40Hz-500Hz Total amplifier power 1400W (PROGRAM) / 2800W (PEAK) Class D @ 4 Ohms Amplifier, subwoofer 700W (PROGRAM) / 1400W (PEAK) Class D @ 4 Ohms Amplifier, satellite/ mid-high unit 700W (PROGRAM) / 1400W (PEAK) Class D @ 4 Ohms Axial sensitivity 1W@1m 96dB / 130dB Max. Electronic Protections Thermal DC / Overload / Digital Compressor / Limit Cooling Temperature-controlled fan Connections Input: 2 Combo - XLR 1/4', 1 RCA in L&R / Output: SPK Satellite / XLR Link External Controls Volume Control / Switch for Input sens / Swtich for mode selector / Power ON with Green LED / Limiter with Red LED / Ground Lift / IP Control Power Supply 115V / 230V Switchable Enclosure Construction Plywood cabinet, resistant black paint, metal grille with foam, rubber feet,handles Mounting One metal standard pole-mount Dimensions (W x H x D) 430 x 450 x 480 mm (16.93' x 17.72' x 18.90') Net Weight 20.51 kg / 45.22 lbs
