M-Patch 2 Pasif Stüdyo Kontrolcüsü

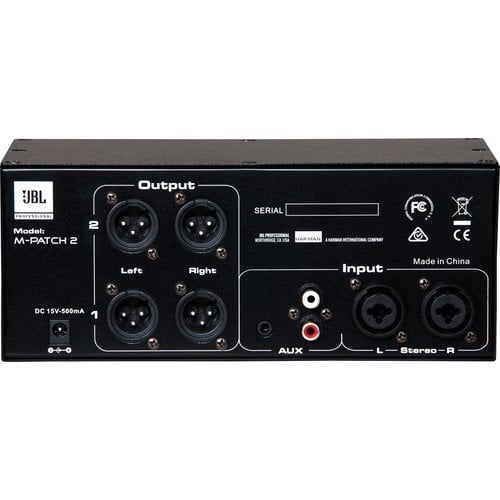

The JBL M-Patch 2 is a passive stereo controller and switch box that is well suited for audio engineers, mastering studios, broadcast applications, project studios, and more. The M-Patch 2 offers passive volume attenuation of up to two line-level sources and can direct the output between two sets of XLR outputs. The main inputs feature combo XLR-1/4' connectors, while an auxiliary input provides stereo RCA and an 1/8' TRS connection for media players and other line-level devices.

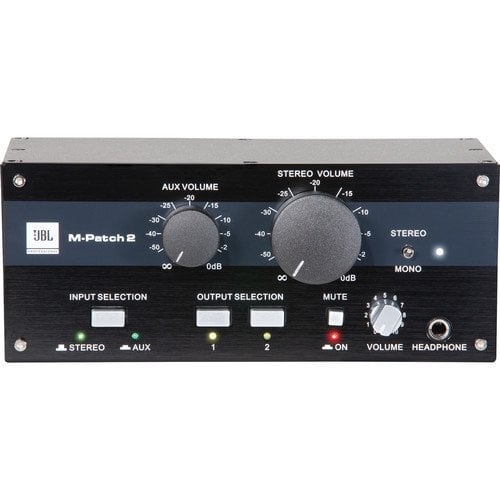

The front panel offers volume controls for the aux and stereo input, as well as a headphone output. There are buttons for routing signals which include a stereo/aux input select, output 1 and 2 select, mute on/off, and a switch for mono/stereo for checking your mixes in mono. The JBL M-Patch 2 ships with a power adapter, but this is only needed to power the headphone amplifier. The passive signal path between the main and aux inputs does not require power to operate. The M-Patch 2 also ships with desktop/rackmount hardware for easy mounting to a desk or within a 19' rack case.
TEMEL ÖZELLİKLER
Yüksek kaliteli, pasif hacim zayıflatıcı
Harika monitör değiştirme cihazı
İki giriş kanalı, iki çıkış kanalı
Combo, RCA ve 1/8 'giriş konektörleri
XLR çıkışları (dengeli veya dengesiz, seçilen girişlere bağlıdır)
Mono / stereo toplama anahtarı
Sistem susturma işlevi
Dahili kulaklık amplifikatörü
Kaliteli bileşenler ve sağlam yapı
Masaüstü veya rafa monte edilebilir kurulum
Harici 16 VAC güç kaynağı dahildir (yalnızca kulaklık amplifikatörünün çalışması için gereklidir)
